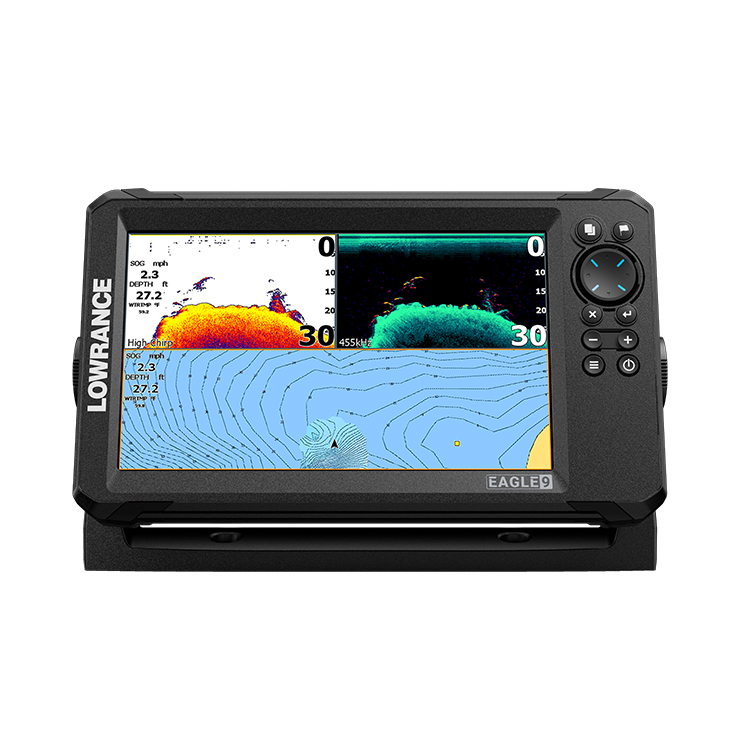

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.
Key Features
• Active Imaging 3-in-1 Sonar (CHIRP/SideScan/DownScan)
• C-MAP Genesis Live
• Smartphone Notifications
• Wireless Networking
• C-MAP base maps, with a multitude of additional mapping options, including C-MAP, Navionics® and more
• FishReveal™ Smart Target View
• C-MAP Easy Routing, Navionics Autorouting capability

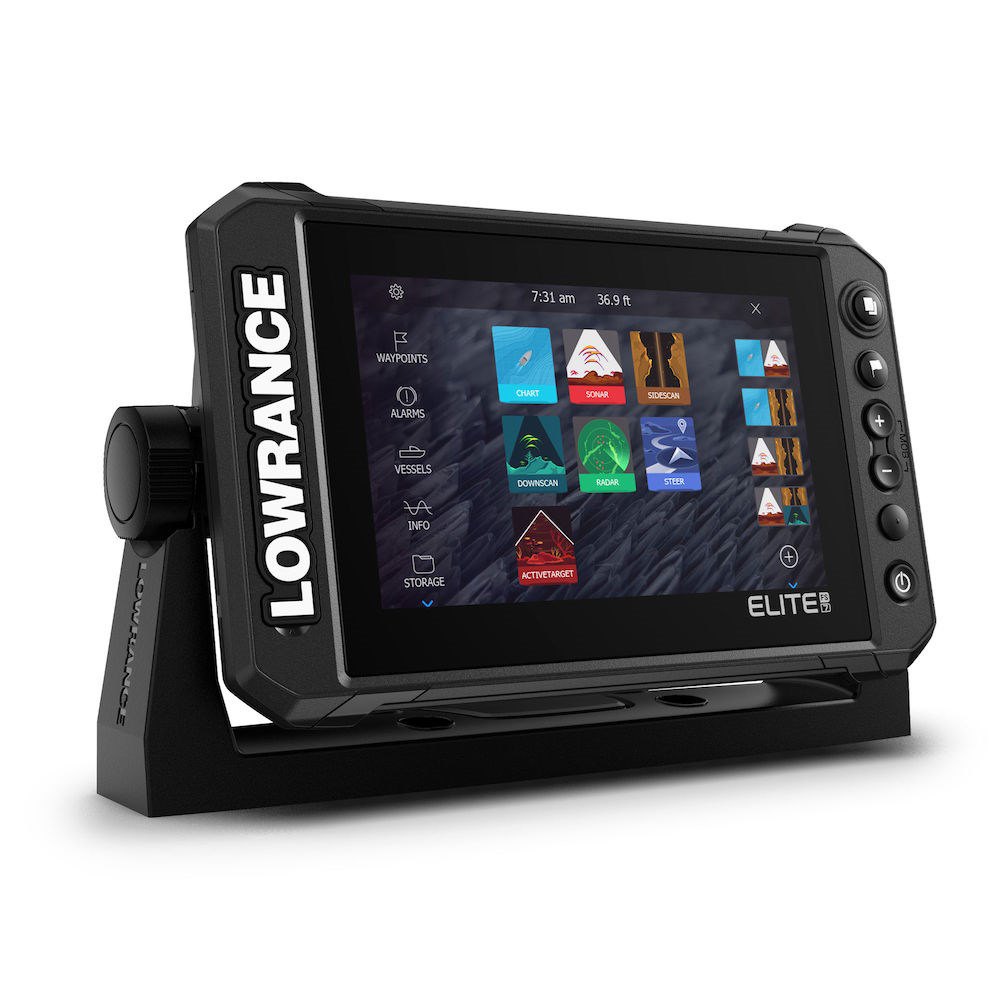

• Easy-to-use, high-resolution touchscreen display
• Built-in CHIRP and Broadband Sounder®
• SmartSteer™ control for Xi5 Trolling Motor
• Integrated wireless connectivity
• NMEA 2000® engine support
• C-MAP base maps, with a multitude of additional mapping options, including C-MAP, Navionics® and more
• Enhanced Surface Clarity lets you see more fish targets near the surface
• Quick Access Control Bar provides one–touch access to system controls
Specifications
Sonar
|
Power Output |
Max 1 kW RMS |
|
Sonar Connections |
One connector for Active Imaging SideScan, DownScan and CHIRP |
|
Active Imaging 3-in-1 |
DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m: SideScan Imaging at 455kHz: Max 300 ft./91 m to each side |
|
CHIRP Sonar |
High Range (160-240kHz)/200 kHz: 1000 ft / 305 m |
|
CHIRP Sonar |
Med Range (60-100kHz)/83 kHz: 1000 ft / 305 m |
|
CHIRP Sonar |
Low Range (40-60kHz)/50 kHz: 3000 ft / 900 m |
|
Available Sonar Frequencies |
Low/Mid/High CHIRP, 50/83/200 kHz Broadband, 455/800 kHz SideScan/DownScan imaging |
|
Depth Alarm |
Yes |
|
Shallow Alarm |
Yes |
|
Temperature Readings |
Yes |
|
Transducer Type |
Single 9-pin Connection; Multiple Transducer Selections from Lowrance® and Airmar® |
Environmental
|
Operating temperature range |
-15°C to +55°C (5°F to 131°F) |
|
Storage temperature |
-20°C to +60°C (4°F to 140°F) |
|
Waterproof rating |
IPX6 and IPX7 |
Electrical
|
Supply voltage |
12 V DC (10 – 17 V DC min – max) |
|
Recommended fuse rating |
3 A |
|
Power consumption (maximum) |
28 W (2 A at 13.8 V DC) |
Display
|
Resolution |
800 x 480 pixels |
|
Viewing angles in degrees |
50° top, 60° bottom, 70° left and right |
|
Brightness |
> 1200 nits |
|
Touch screen |
Multitouch |
Physical
|

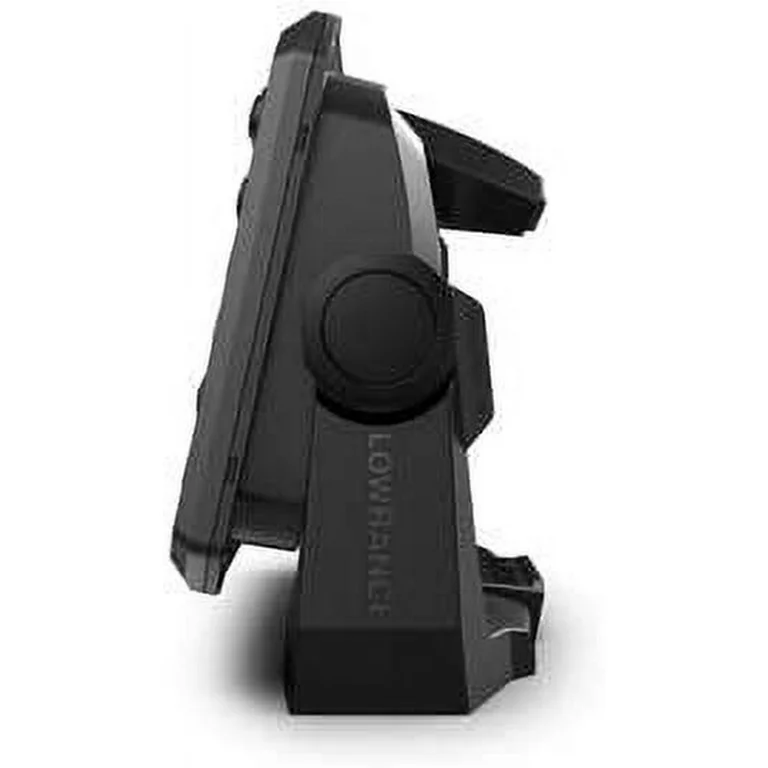

Weight (display only) |
1.2 kg (2.7 lbs.) |
|
Compass Safe Distance |
0.5 m (1.6 ft.) |

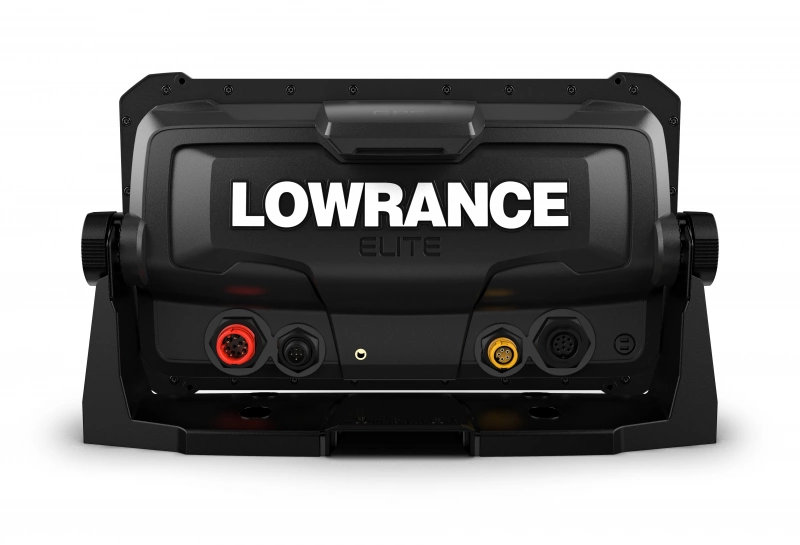

Interface/Connectivity
|
NMEA 2000® |
1 port (Micro-C connector) |
|
Data card reader |
1x slot (microSD, SDXC) |
|
Ethernet |
1 port, (5-pin Ethernet connector, 100Base-T) |
|
Sonar |
1 port (9-pin connector) |
|
WiFI Internal |
802.11b/g/n : No wireless networking between units |
|
Bluetooth® |
4.0 with support for Bluetooth® Classic |
|
GPS |
10Hz high speed update WAAS, MSAS, EGNOS, GLONASS |
