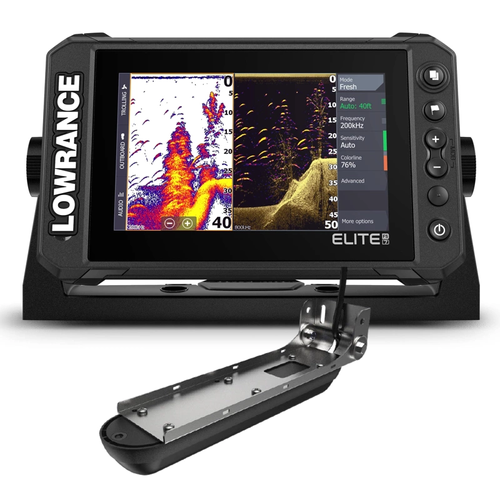

The ELITE 7 FS with Active Imaging™ 3-in-1 sonar technology offers anglers a revolutionary way to see underwater structures and cover with unmatched detail. Featuring CHIRP, SideScan, and DownScan imaging combined with FishReveal™, this advanced display empowers you to easily identify fish against complex underwater environments. With the ability to view both CHIRP sonar and DownScan Imaging™ on one screen, you can effortlessly distinguish fish from structure and cover.

Key Features:

• Active Imaging 3-in-1 Sonar: Combines CHIRP, SideScan, and DownScan capabilities for a complete view of the underwater landscape.

• C-MAP Genesis Live: Create real-time maps of your fishing areas for enhanced navigation.

• Smartphone Notifications: Stay connected while enjoying your time on the water.

• Wireless Networking: Connect seamlessly with other devices for enhanced functionality.

• Extensive Mapping Options: Includes C-MAP base maps and compatibility with Navionics® and more.

• FishReveal™ Smart Target View: Easily identify fish targets with enhanced clarity and detail.

• C-MAP Easy Routing and Navionics Autorouting: Navigate effortlessly to your favorite fishing spots.

• User-Friendly Touchscreen Display: High-resolution multitouch display for intuitive operation.

• Built-In CHIRP and Broadband Sounder®: Enhanced sonar performance for improved fish detection.

• SmartSteer™ Control for Xi5 Trolling Motor: Manage your trolling motor directly from the display for greater control.

• Integrated Wireless Connectivity: Easy connection to mobile devices for notifications and updates.

• NMEA 2000® Engine Support: Compatible with various engine types for comprehensive control.

• Enhanced Surface Clarity: Improved visibility of fish targets near the surface for better fishing opportunities.

• Quick Access Control Bar: Provides one-touch access to essential system controls for convenience.

Specifications:

• Sonar Power Output: Max 1 kW RMS

• Sonar Connections: One connector for Active Imaging SideScan, DownScan, and CHIRP

• Active Imaging 3-in-1:

  • DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m

  • SideScan Imaging at 455 kHz: Max 300 ft / 91 m to each side

• CHIRP Sonar Range:

  • High Range (160-240 kHz) / 200 kHz: 1000 ft / 305 m

  • Medium Range (60-100 kHz) / 83 kHz: 1000 ft / 305 m

  • Low Range (40-60 kHz) / 50 kHz: 3000 ft / 900 m

• Available Sonar Frequencies: Low/Mid/High CHIRP, 50/83/200 kHz Broadband, 455/800 kHz SideScan/DownScan imaging

• Depth and Shallow Alarms: Yes

• Temperature Readings: Yes

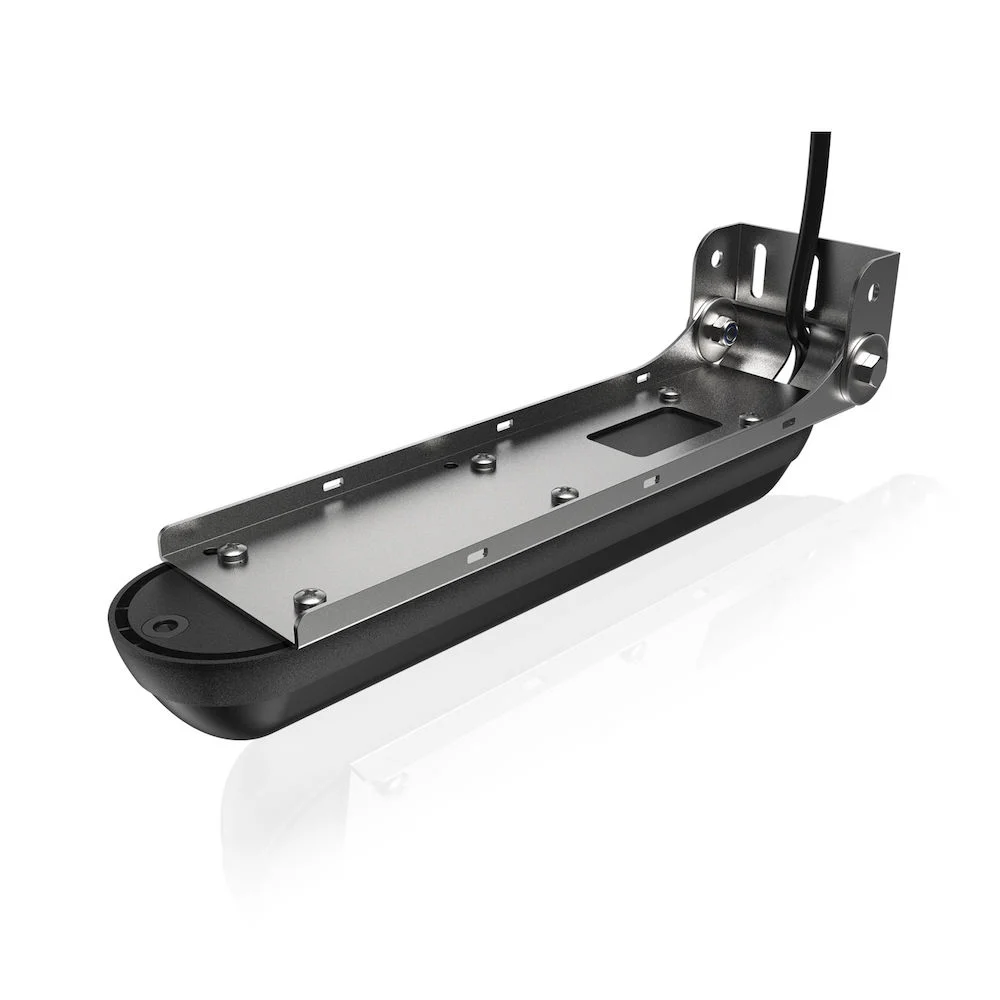

• Transducer Type: Single 9-pin connection; multiple transducer selections from Lowrance® and Airmar®

• Environmental Ratings:

  • Operating Temperature Range: -15°C to +55°C (5°F to 131°F)

  • Storage Temperature: -20°C to +60°C (4°F to 140°F)

  • Waterproof Rating: IPX6 and IPX7

• Electrical Requirements:

  • Supply Voltage: 12 V DC (10 – 17 V DC)

  • Recommended Fuse Rating: 3 A

  • Power Consumption (Max): 28 W (2 A at 13.8 V DC)

• Display:

  • Resolution: 800 x 480 pixels

  • Viewing Angles: 50° top, 60° bottom, 70° left and right

  • Brightness: > 1200 nits

  • Touchscreen: Multitouch

• Physical Specifications:

  • Weight (Display Only): 1.2 kg (2.7 lbs.)

  • Compass Safe Distance: 0.5 m (1.6 ft.)

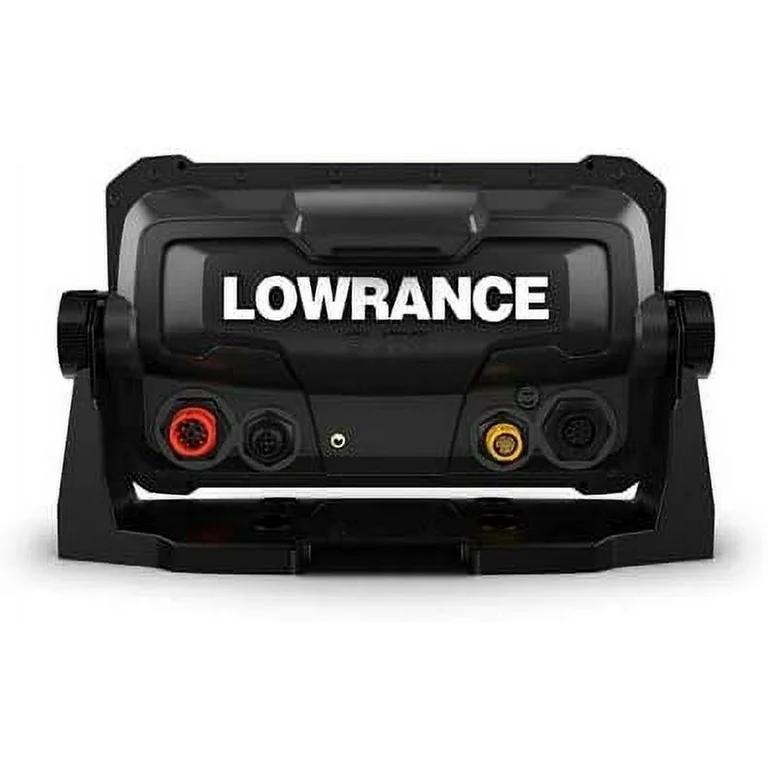

• Interface/Connectivity:

  • NMEA 2000®: 1 port (Micro-C connector)

  • Data Card Reader: 1x slot (microSD, SDXC)

  • Ethernet: 1 port (5-pin Ethernet connector, 100Base-T)

  • Wi-Fi: Internal 802.11b/g/n (no wireless networking between units)

  • Bluetooth®: 4.0 with support for Bluetooth® Classic

• GPS: 10Hz high-speed update, WAAS, MSAS, EGNOS, GLONASS
