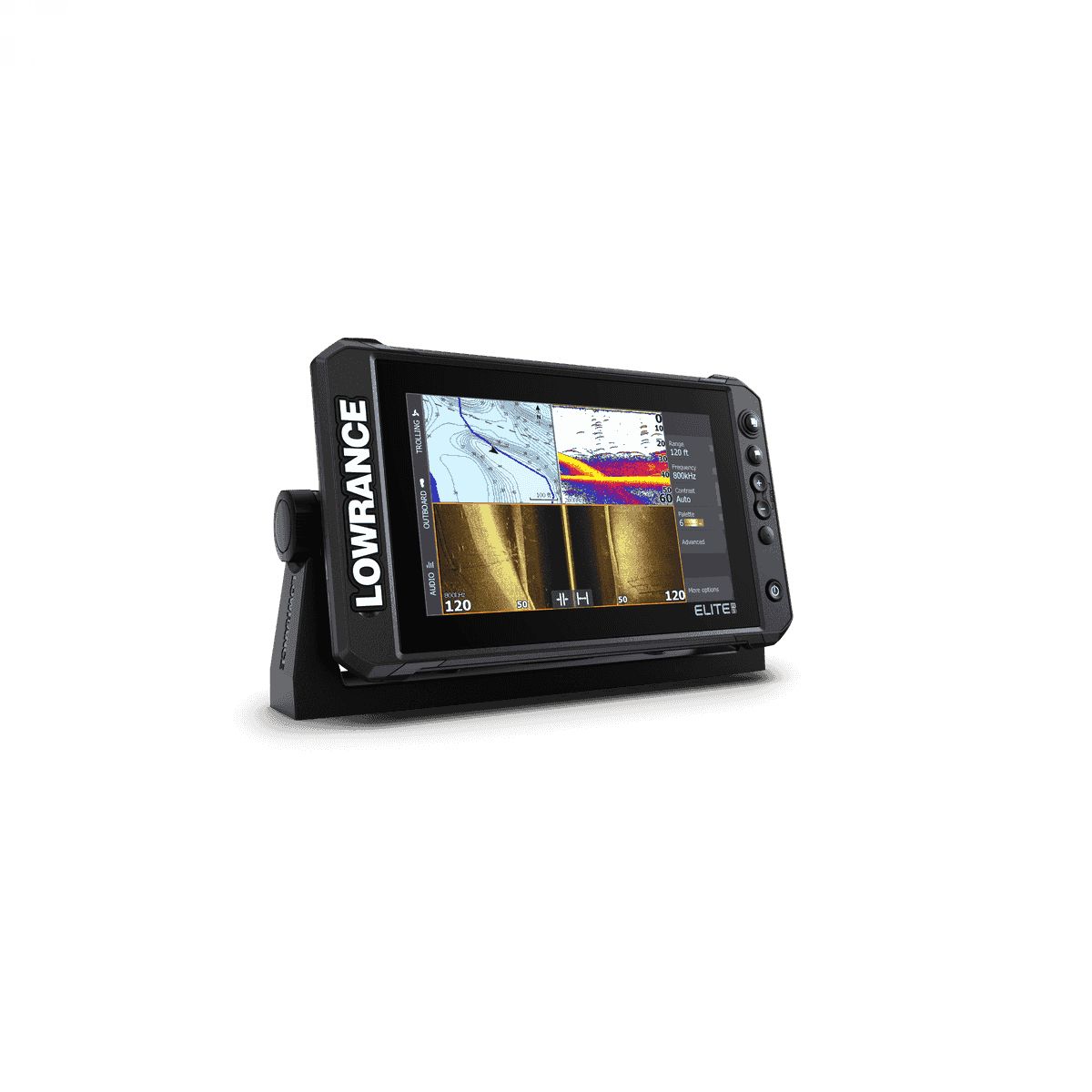

The ELITE 9 FS paired with Active Imaging™ 3-in-1 sonar technology takes your fishing experience to new heights. With an unmatched ability to see structure and cover in refined detail, this innovative sonar features CHIRP, SideScan, and DownScan capabilities combined with FishReveal™ to give you a comprehensive view of the underwater environment. Easily differentiate fish from structure and cover using high-resolution DownScan images displayed alongside traditional CHIRP sonar on a single screen.

Key Features:

• Active Imaging 3-in-1 Sonar: Combines CHIRP, SideScan, and DownScan for comprehensive underwater imaging.

• Active Imaging 2-in-1 Sonar: Offers SideScan and DownScan options for flexible viewing.

• C-MAP Genesis Live: Create real-time maps of your fishing areas.

• Smartphone Notifications: Stay connected while on the water.

• Wireless Networking: Seamlessly connect with other devices.

• Extensive Mapping Options: Includes C-MAP base maps and support for Navionics® and more.

• FishReveal™ Smart Target View: Easily recognize fish with enhanced clarity.

• C-MAP Easy Routing and Navionics Autorouting: Navigate effortlessly to your fishing spots.

• User-Friendly Touchscreen Display: High-resolution display with multitouch functionality.

• Built-In CHIRP and Broadband Sounder®: Enhanced sonar capabilities for better fish detection.

• SmartSteer™ Control for Xi5 Trolling Motor: Effortlessly manage your trolling motor.

• Integrated Wireless Connectivity: Easy connection to mobile devices.

• NMEA 2000® Engine Support: Compatible with various engine types.

• Enhanced Surface Clarity: Improved visibility of fish targets near the surface.

• Quick Access Control Bar: One-touch access to essential system controls.

Specifications:

• Sonar Power Output: Max 1 kW RMS

• Sonar Connections: One connector for Active Imaging SideScan, DownScan, and CHIRP

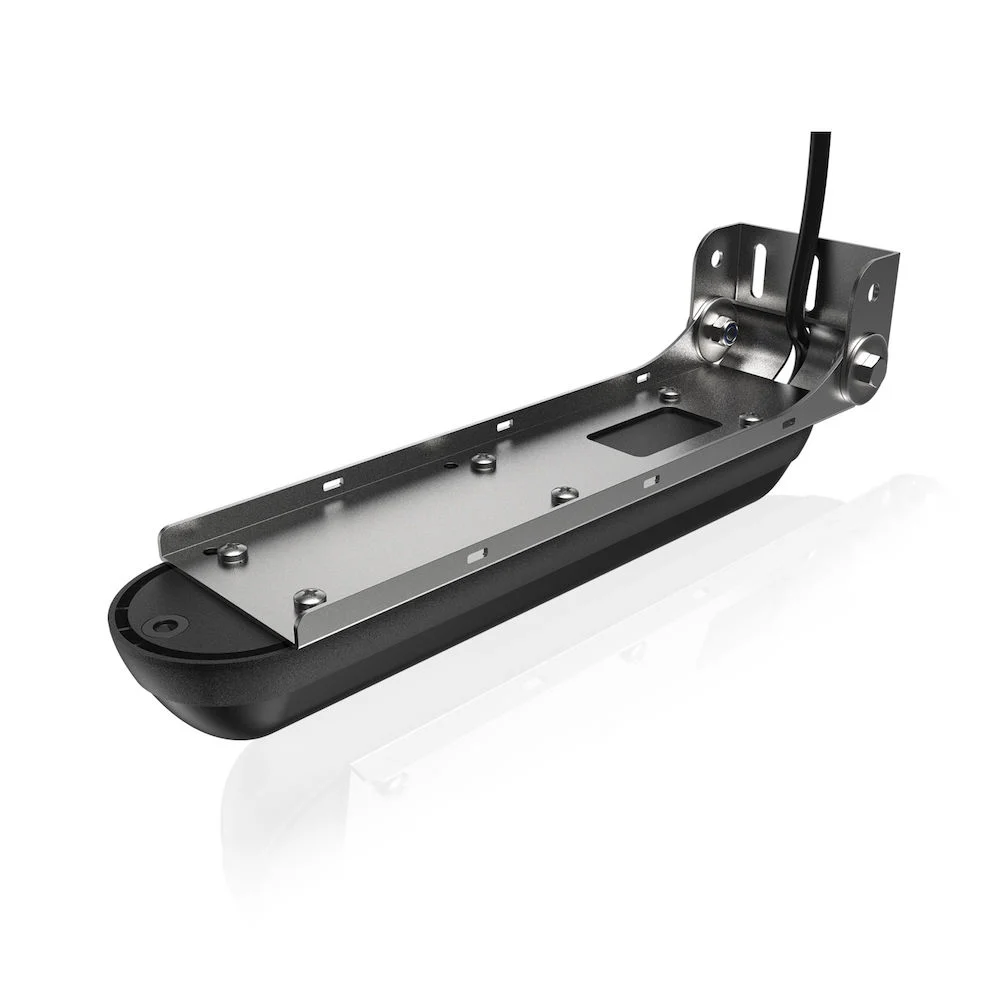

• Active Imaging 3-in-1:

  • DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m

  • SideScan Imaging at 455 kHz: Max 300 ft / 91 m to each side

• CHIRP Sonar Range:

  • High Range (160-240 kHz) / 200 kHz: 1000 ft / 305 m

  • Medium Range (60-100 kHz) / 83 kHz: 1000 ft / 305 m

  • Low Range (40-60 kHz) / 50 kHz: 3000 ft / 900 m

• Available Sonar Frequencies: Low/Mid/High CHIRP, 50/83/200 kHz Broadband, 455/800 kHz SideScan/DownScan imaging

• Depth and Shallow Alarms: Yes

• Temperature Readings: Yes

• Transducer Type: Single 9-pin connection; multiple transducer selections from Lowrance® and Airmar®

• Environmental Ratings:

  • Operating Temperature Range: -15°C to +55°C (5°F to 131°F)

  • Storage Temperature: -20°C to +60°C (4°F to 140°F)

  • Waterproof Rating: IPX6 and IPX7

• Electrical Requirements:

  • Supply Voltage: 12 V DC (10 – 17 V DC)

  • Recommended Fuse Rating: 3 A

  • Power Consumption (Max): 28 W (2 A at 13.8 V DC)

• Display:

  • Resolution: 800 x 480 pixels

  • Viewing Angles: 50° top, 60° bottom, 70° left and right

  • Brightness: > 1200 nits

  • Touchscreen: Multitouch

• Physical Specifications:

  • Weight (Display Only): 1.2 kg (2.7 lbs.)

  • Compass Safe Distance: 0.5 m (1.6 ft.)

• Interface/Connectivity:

  • NMEA 2000®: 1 port (Micro-C connector)

  • Data Card Reader: 1x slot (microSD, SDXC)

  • Ethernet: 1 port (5-pin Ethernet connector, 100Base-T)

  • Wi-Fi: Internal 802.11b/g/n (no wireless networking between units)

  • Bluetooth®: 4.0 with support for Bluetooth® Classic

• GPS: 10Hz high-speed update, WAAS, MSAS, EGNOS, GLONASS
